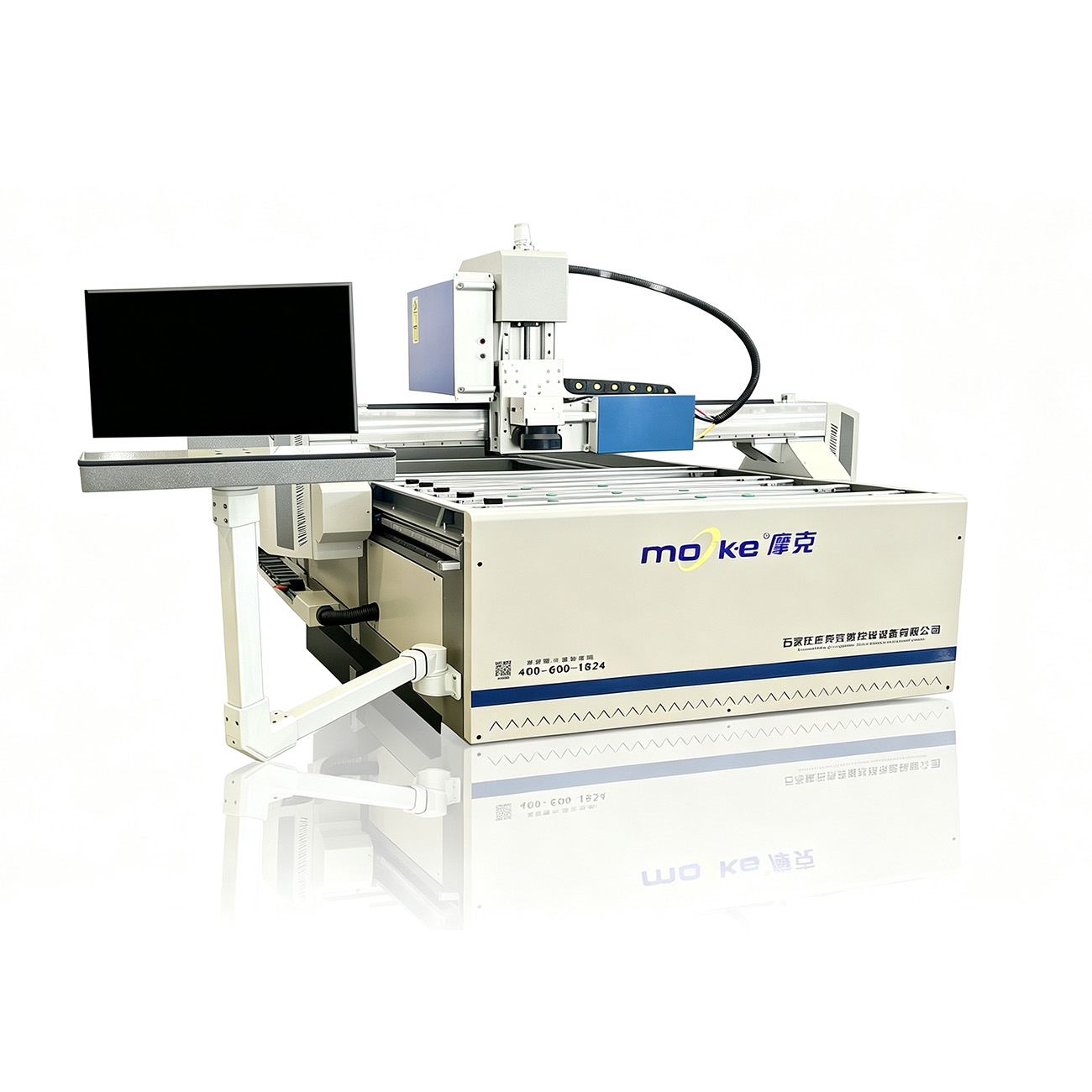

移动激光打沙机是我厂根据现在智能镜行业发展需求而研发的一款镜子激光打砂设备； 该机不仅适用于智能镜激光打砂还适用于其他玻璃，脱漆，钻孔除膜等工艺也适用于不锈钢、氧化铝、铜等各种合金材料表面打标等。
| 设备型号Machine model | C/1325- 140W |
| 加工方式Working mode | 光纤激光Fiber Laser |
| 加工尺寸Working size | 1300*2500*50MM |
| 占地面积Floor space | 3077*2647*1580MM |
| 设备重量Weight | 1100KG |
| 总功率Total power | 4.5 K W |
| 激光器Laser | MOPA高峰值光纤激光器High Peak Fiber Laser |
| 激光功率Laser power | 140W(摩克专用激光器)140W (Moke customized laser) |
| 激光器理论寿命Theoretical life of laser | 8万小时左右About 80,000 hours |
| 激光波长Optical maser wavelength | 1055-1070nm |
| 标刻范围Engraving range | 标配宽度70*2500mm 可选宽度150*2500mm/200*2500mm（需200W激光器） |
| 机械重复精度Mechanical repeatability | ≤±0.25mm |
| 激光重复精度Laser repetition accuracy | ≤±0.002mm |
| 雕刻线速Engraving line speed | ≤12000mm/s |
| 运动系统Motor system | 台湾连续出光激光系统CW laser system (Taiwan) |
| 排烟系统Smoke exhaust system | 高压风机烟道直排High pressure fan flue direct exhaust |
| 主机工作电源Work power | AC190-240V . 50- 60HZ |
| 工作环境Work Environment | +5-35℃，相对湿度Relative humidity 30 - 60% |
| 名称 Name | 品牌 Brand | 优势 Advantages |
| 激光发生器Laser | 深圳欧凌140W |
理论使用寿命8万小时左右,激光打沙均匀，无爆边，钻孔表面甭边率小于400µm，小孔小于300µm Theoretical service life is about 80,000 hours |
| 振 镜 头Galvanometer lens | 深圳嘉沃泰克12光斑定制款 Jinhai chuang |
耐用度是国产普通的2倍 The durability is twice that of ordinary domestic products |
| 场镜 & 扩束镜Field Lenses & Beam Expanders | 远心场镜 Telecentric field lenses | |
| 导轨 & 滑块Guide Rails & Slides | 台湾亚德克 | 硬度高、精度高、防灰尘 |
| 其他电器例如开关/滤波等Other electrical appliances such as switches/filters, etc. | — | — |
| 齿条Rack |
定制1400MM长度 1.5模 Made in China, 1.5 die rack |
硬度高，精度高 High hardness and high precision |
| 激光控制系统Laser control system | 台湾新代730SA-PLUS |
圆形矩形自适应 Round rectangle adaptive |
| 电缆线Cable |
上海卡迪夫 Shanghai Cardiff |
特种柔性电缆 Special flexible cable |
| 电脑Computer |
激光器专用 Laser matched |
— |
| 伺服电机Servomotor |
台湾新代 Taiwan |
双驱动，四个电机(三个750, 一个400W) Dual drive, four motors(three 750W and one 400W) |
| 横梁Crossbeam |
工业铝型材 Seamless steel |
加工中心专业加工制造 Customized |
| 机身The machine body |
一体焊接 One-piece welding |
经过火时效处理，永久不变形 After fire aging treatment, it will not be deformed permanently |
| 油水过压器Oil-water over pressurizer |
手动注油系统 Manual oil injection system |
手动润滑，避免冬天上冻，增长设备使用寿命 Manual lubrication to avoid freezing in winter and prolong the service life of the equipment |
